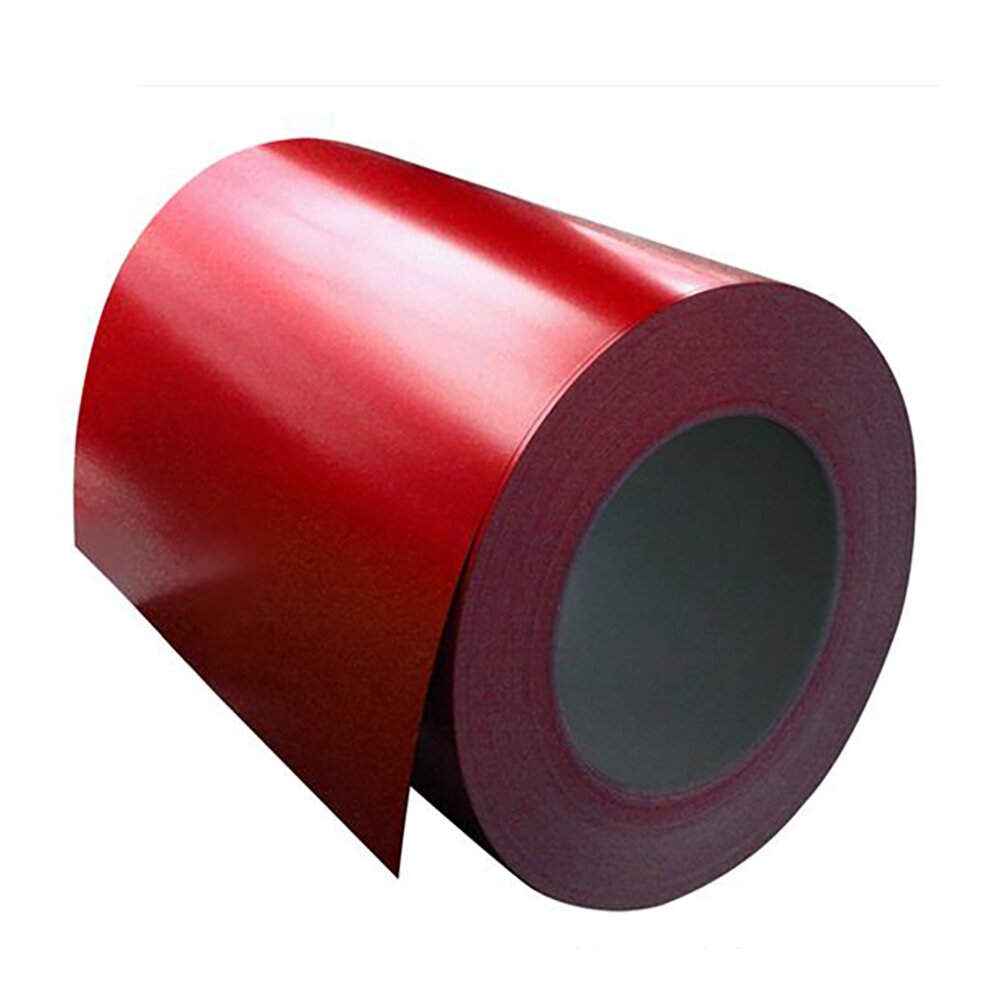

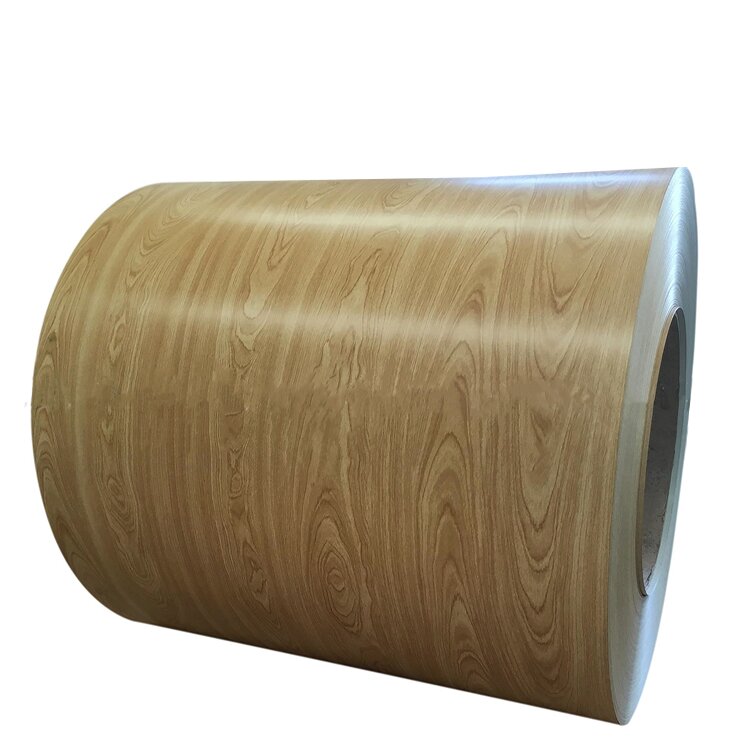

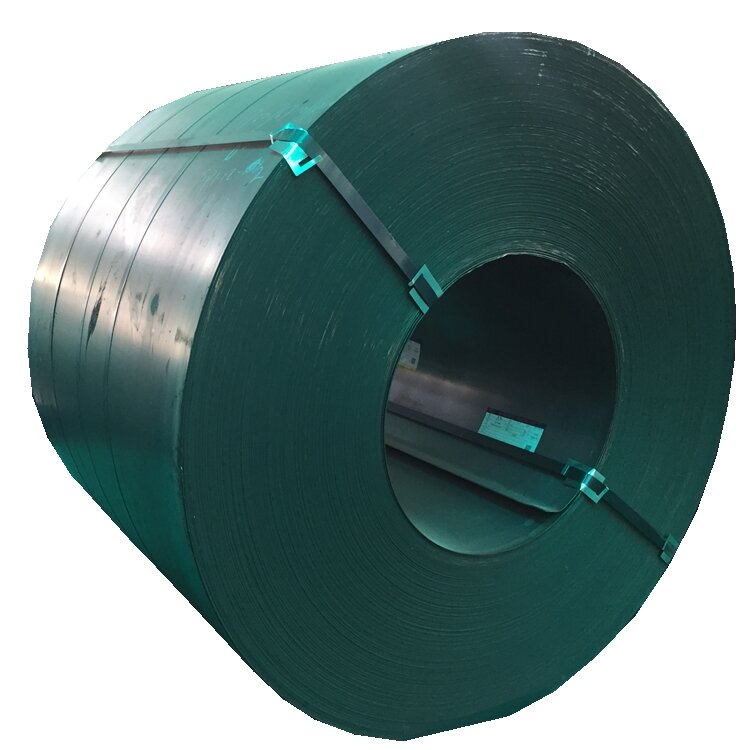

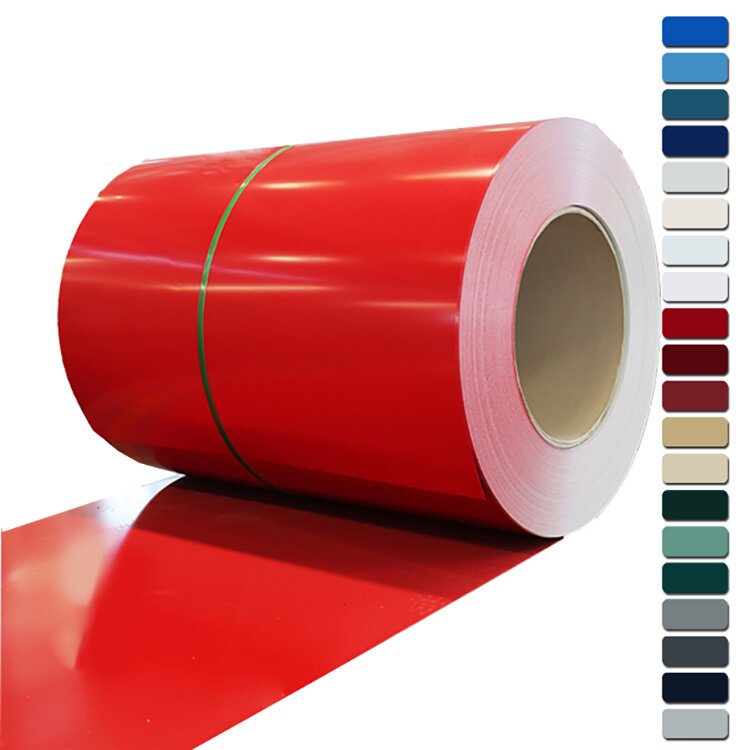

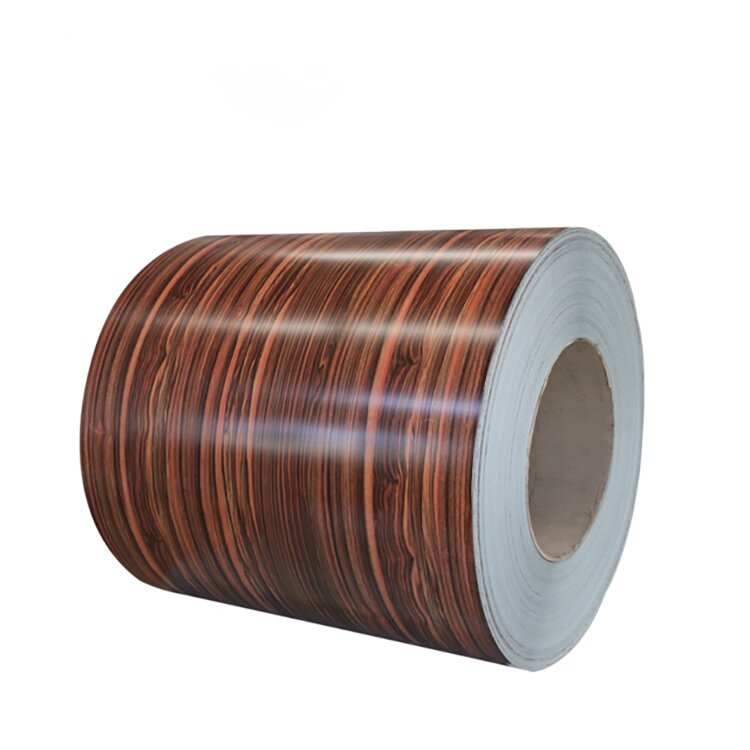

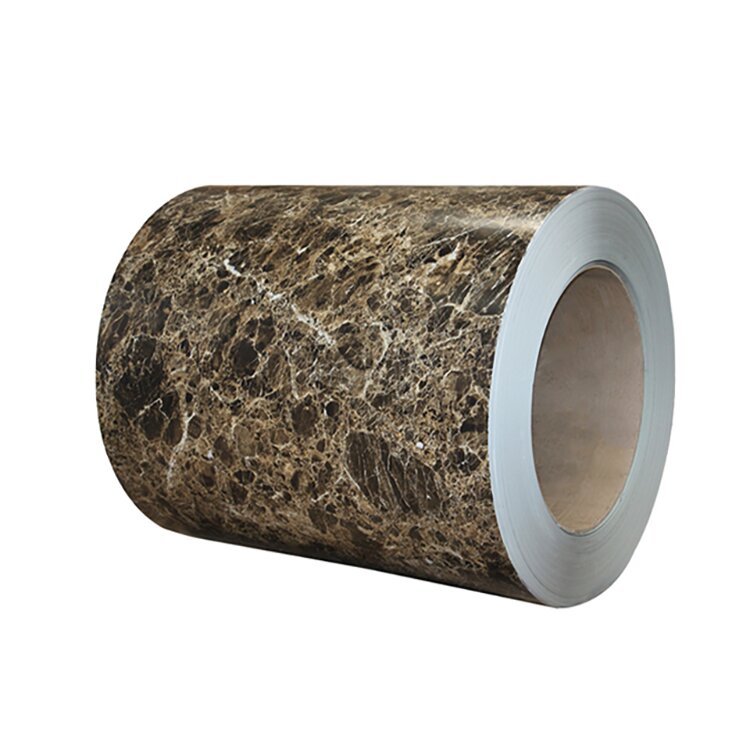

Color Coated Steel Coil
Color steel coil is a composite material, also called color coated steel plate, which is made of strip steel after continuous chemical transfer treatment such as surface degreasing and phosphating on the production line, and then coated with organic paint and baked. finished product.
PPGI Coil are based on hot-dip galvanized sheets, hot-dip galvanized sheets, and electro-galvanized sheets. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic coatings are applied on the surface. Products that are subsequently baked and cured. It is also named because of the organic paint colored steel coils coated with various colors, referred to as color-coated steel coils.
The PPGI Coil using hot-dip galvanized steel coil as the base material is not only protected by the zinc layer, but the organic coating on the zinc layer plays a role in covering and protecting, preventing the steel coil from rusting, and its service life is longer than that of hot-dip galvanized coil. The product obtained by coating the organic coating on the hot-dip galvanized steel plate is the hot-dip galvanized color-coated steel plate.
In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also has the function of insulating protection and preventing rust, and the service life is longer than that of the hot-dip galvanized sheet.
Product parameters
NAME | PPGI | GALVANIZED | GALVALUME/ALUZINC |
CERTIFICATE | ISO9001:2008 | ||
STANDARD
| EN10142 JIS G3302 GB/T-12754-2006 | ASTM A653 JIS G3302 SGCC/SGCH GB/T2518 European Standard | ASTM A792 JIS G3321 JIS G3317
|
GRADE
| CGCC CGCH CGCD1-CGCD3 CGC340-CGC570 GRADE
| SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D | GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
MODEL NO | 0.16MM-1.5MM*1250MM OR UNDER | (0.12-1.5)*1250MM OR UNDER | 0.16MM-1.5MM*1250MM OR UNDER |
TYPE
| Steel coil Steel sheets/plates Corrugated steel sheets/plates
| Steel coil Steel sheets/plates Corrugated steel sheets/plates | Steel coil Steel sheets/plates Corrugated steel sheets/plates
|
TECHNIQUE | Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL | Hot rolled-cold rolled - galvanized | Hot rolled-cold rolled -galvalume /Aluzinc
|
SURFACE TREATMENT | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating
| |
APPLICATION | Structural use ,roofing, commercial use, household appliance, industry, family | ||
SPECIAL APPLICATION | Wear resistant steel, high- strength - steel plate | ||
The hot-dip galvanized substrate is made of hot-dip galvanized steel sheet. The corrosion resistance of hot-dip galvanized sheet is 2-5 times that of hot-dip galvanized sheet. Continuous or intermittent use at temperatures up to 490°C will not severely oxidize or produce scale. The ability to reflect heat and light is twice that of hot-dip galvanized steel, and the reflectivity greater than 0.75 is an ideal building material for saving energy. The electro-galvanized substrate uses an electro-galvanized sheet as the substrate, and the product obtained by coating with an organic coating and baking is an electro-galvanized color-coated sheet. Because of its beautiful appearance and excellent processing performance, it is mainly used in home appliances, audio, steel furniture, interior decoration, etc.

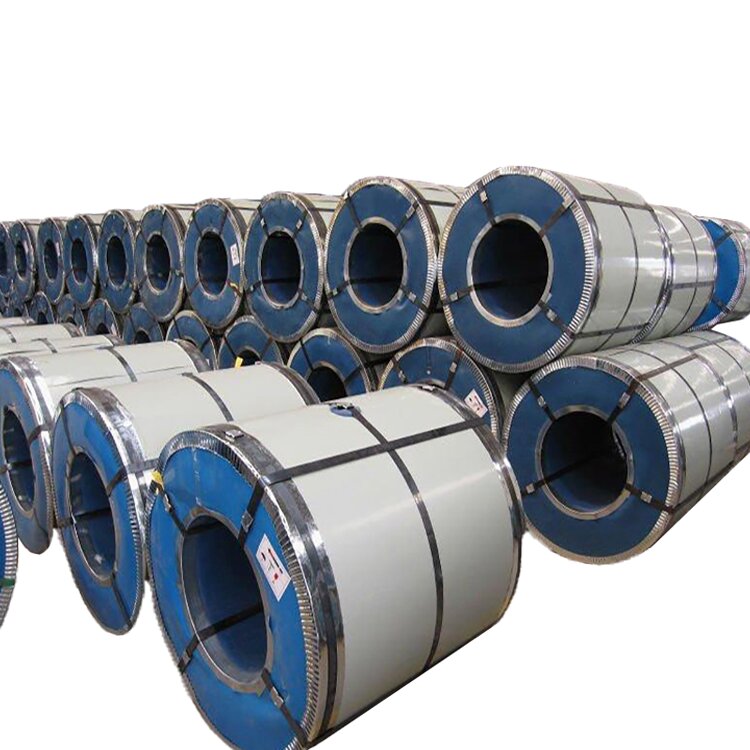

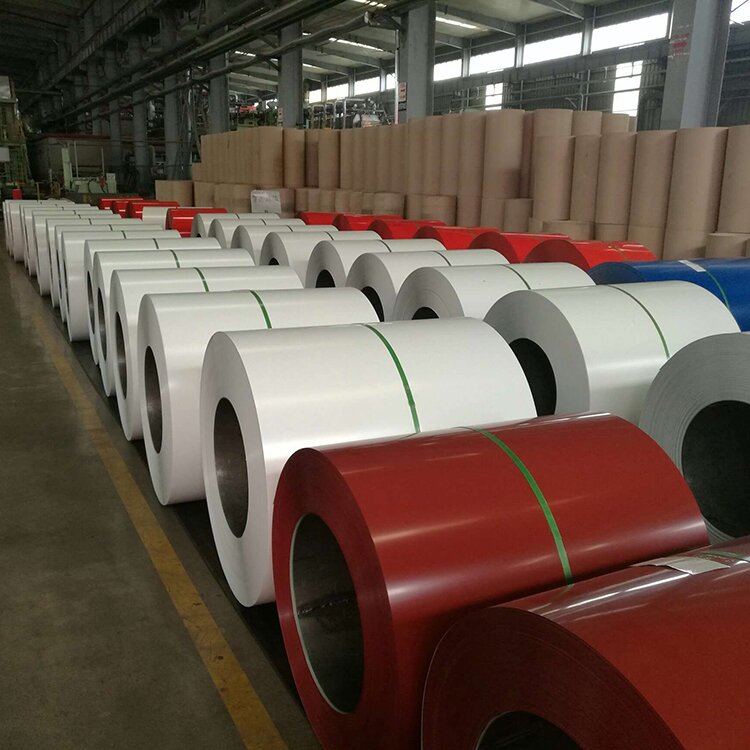

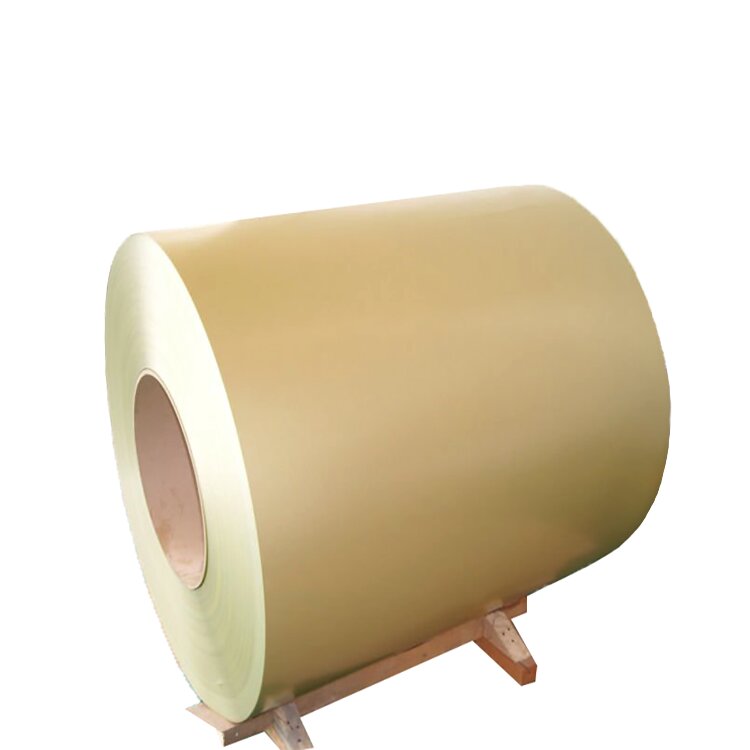

Packing of Color Picture Steel Coil
